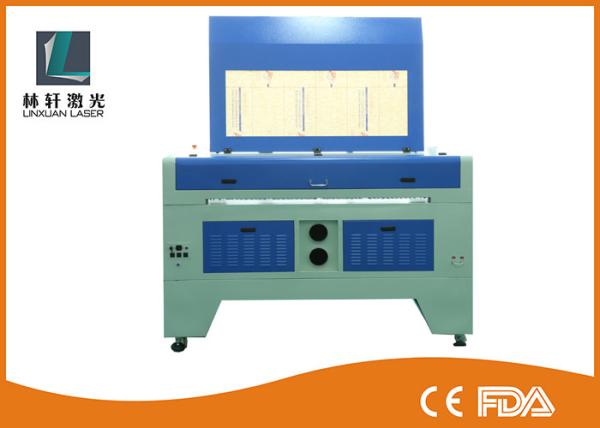

High Precision 80W 1060 Industrial Laser Cutting Machine For Plastic / PVC Board

    Buy cheap High Precision 80W 1060 Industrial Laser Cutting Machine For Plastic / PVC Board from wholesalers

    Buy cheap High Precision 80W 1060 Industrial Laser Cutting Machine For Plastic / PVC Board from wholesalers
    • Buy cheap High Precision 80W 1060 Industrial Laser Cutting Machine For Plastic / PVC Board from wholesalers

    High Precision 80W 1060 Industrial Laser Cutting Machine For Plastic / PVC Board

    Ask Lasest Price
    Brand Name : Linxuan Laser
    Model Number : LX-1610
    Certification : CE
    Price : Negotiable
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    High Precision 80W 1060 Industrial Laser Cutting Machine For Plastic / PVC Board

    Acrylic Cloth Acrylic 80W 1060 CO2 Laser Cutting Machine For Acrylic , Plastic , PVC board
    Features


    1. The professional manufacturers adopts square tube framework in China, with more than 40% higher fuselage strength than iron sheet structure. This design prevents the machine from quivering resonance and distortion during long term work.
    3. New-style high-efficiency laser tube is adopted. Laser beam is more stable than the traditional type.Usage age is more than 10000 hours.

    4. Latest software compatible with AutoCAD,CoreDRAW and other kinds of graphics processing software
    5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%.


    Application

    Applicable Industries: Advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.

    Applicable Materials: Acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials .
    .

    Machine specification

    ModelLX-1060LX-6040LX-1390LX-1610/1612/1325
    LaserCO2 glass sealed laser tube or metallic sealed laser tube
    Laser power40W/60W/80W60W/80W/100W/120W/150W
    Work platform size1000x600mm |600×400mm | 1300×900mm | 1600x1000mm/1200mm | 1300x2500mm
    Engraving speed≤1000mm/s
    Cutting speed≤500mm/s
    Worktablehoney-comb or aluminum knife optional
    Precision of positioning≤±0.025mm
    Working temperature5-30 °C degree
    Control SystemRDCAM DSP Control system

    SoftWare

    Laser Cut software
    PLT,BMP,DXF,DST,TIF format supported
    CorelDraw, AutoCAD Software Compatible

    Transmission

    Belt transmission (Standard)
    Or ball screw transmission optional for extra cost

    Linear RailTaiwan HIWIN linear rail
    Motor type:Japan Stepper motor
    DPI2500
    Recommended spare partsLaser tube, Focal lens, Reflection Mirror
    Power supply220V/50hz/1kva 220V/60HZ/1PH 110V/60HZ/1ph optional
    Machine dimension (mm)1600*1100*13001600*800*10501950*1470*13002280*1730*1180
    G.W230KG260KG470KG550KGS



    Sample show




    Packaging & Delivery

    1. Wood case or as per required.
    2. The delivery lead time would be 7-15 days against down payment.
    3. As for the wholsalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder.
    Competitive Advantages
    1. We offer high quality products at competitive price in quick delivery.
    2. 100% custom pass guaranteed.
    3. Good after-sale service.
    4. Flexible and Untraceable payment terms.
