Energy Saving Portable Laser Etching Equipment With Laser Marking
Systems , 0.005mm Min Focusing Spot
Product Description

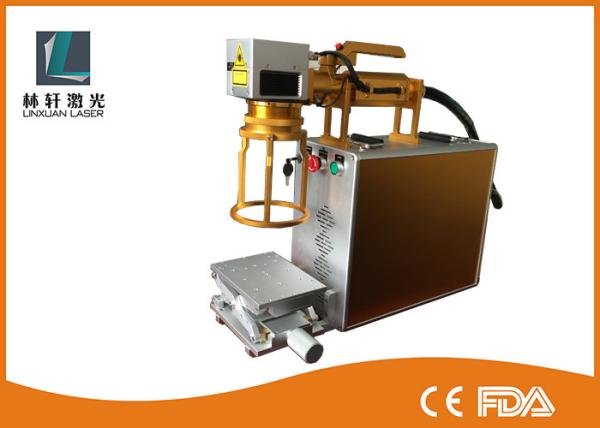

Portable fiber laser marking machine price 10w 20w 30w 50w fiber
laser marker for metal and nonmetal logo marking
Applicable material:auto parts,bearing,stainless steel,carbon
steel,iron plate and other metal material.
This machine is portable for its 60kg weight and small package
Application Field and Material
Electronic Components : Resistance, capacitance, chips, printed circuit boards, computer
keyboard.
Apparatus And Meter: Panel signs, precision equipment ,etc.,
Instrument: Panel signs nameplates, precision equipment ,etc.,
Hardware Tools : Knives, tools, measuring tool, cutting tool, etc.,
Automobile Parts : Pistons, piston rings, gears, shafts, bearings, clutch, lights,
etc.,
Mechanical Parts : Bearings, gears, standard parts, motors, etc.,
Daily Necessities : Handicrafts, zipper, key holder, sanitary ware, etc.,
Jewelry: Rings Jewelry, gold, silver,etc.
Food, drinking packing: Plastic packings,etc.
Features of Laser Marking Solution LX-A1:
1. Fiber laser, Basic model, high speed galvo scanner; IPG laser
and Chinese Brand laser for option.
2. Maintenance Free, save equipment and worker cost;
3. Imported Galvonometer, Higher precision,faster speed;
4. Higher photoelectric conversion efficiency, Low power
consumption;
5. Red light preview, more accurate and reduce positioning time;
6. Laptop with Powerful marking software;
7. User friendly software interface, easy operation;
8. Set and deal different layers graphic separately;
9. Support PLT,PCX,AL,DXF, BMP,JPG formats file;
10. Compatible AutoCAD,CorelDraw,Photoshop etc software Automatic
serialization,date coding letter, symbol, pattern, figure, image,
bar code, 2D code auto arrangement and amendment.
Technical Parameter for blue color table fiber laser marking
machine
Parameters
| Wave length of laser | 1064nm |
| Laser repetition frequency | 20kHz~100kHz |
| Laser power | 10W 20W 30W 50W |
| Marking scope | 70*70 /100*100 /200*200/300*300mm |
| Laser sources | Fiber module |
| Laser Head | Scanning head |
| The minimum focus facula diameter | 20μm |
| Minimal character | 0.01mm |
| Marking speed | ≤7000mm/s |
| Repeated accuracy | 0.0025mm |
| Cooling ways | Force-air Cooling |
| Power supply | 220V/ 50Hz/2kVA |
| Process Material | All kinds of metal and part of Non-metal Materials |
| Support format | PLT, BMP, DXF, JPG, TIF, AI etc |
| Package | Standard Crate for export |
Optional accessory
1 semiconductor module
1 set of high-speed vibrating mirrors
1 set of marking control system
1 industrial computer
1 marking work table
1 red laser pointer
1 pedal switch
1 set of marking software
1 user manual
After sales service
Training Service
Our technician is available to your factory and offer training of
how to use our machines.
As well, you may send your technician to our company to learn how
to operate machines.
Quality Guarantee
We arrange final test before shipment. We run the machine without
material for a few days,
and then cut materials for test. After making sure machine is the
best performance, then ship
out the machine.
Operating guide
Explain the use of machines and software. Guide the customer proper
use, extend product life
and reduce energy consumption.
Machine maintenance&Warranty
Explain the maintenance of machine parts to extend product life and
save the energy consumption,The whole set of machine warranty
period is 2 year.
Packaging & Delivery
1. Standard plywood case, its compressive strength and bearing
quality is better.
2. the board area is bit, the soil structure is good, it is better
in leakproofness and waterproof.
3. when importing, the plywood case is with fumigation-free, the
procedure is simple.
4. Delivery Detail: within 7-14 days after received your payment
