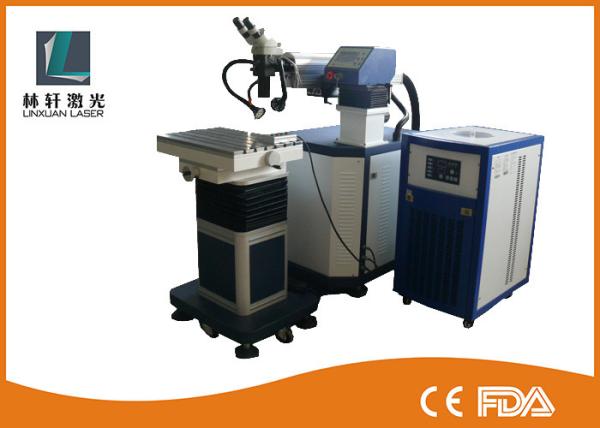

    Automatic Channel Letter Laser Welding System , Laser Soldering Machine For Jewellery

    Ask Lasest Price
    Brand Name : LinxuanLaser
    Model Number : LX-D19
    Certification : CE FDA ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100units per month
    • Product Details
    • Company Profile

    Automatic Channel Letter Laser Welding System , Laser Soldering Machine For Jewellery

    Automatic Channel Letter Signage Laser Letter Welding Machine With CE FDA Certificate

    Advantages


    1. Energy, pulse width, frequency and facula can be adjusted within a wide range to achieve different welding effects. Parameters are adjusted by the control rod in the sealed cavity, simple and efficient.
    2. Ceramic focusing cavity imported from the U.K. is employed, corrosion resistant, high temperature resistant, efficient in electrical / optical conversion.

    3.The focusing cavity's service life is 8 to 10 years, and the service life of the xenon lamp is over 8 million times.
    4. World-leading automatic light shielding system is employed to remove stimulation of light on eyes during operation.
    5. 24-hour continuous operation, with stable operating performance, and free from maintenance within 10000 hours.
    6. Personalized design in compliance with ergonomics principles.


    Applicable to material and fields


    Perforation and spot welding of sand hole for Specialized for Spectacle frames welding

    And also stainless steel materials.


    Technical specifications


    ModelLX-D19
    Average laser power200w
    Max laser power200w
    Max energy of single pulse75J
    Laser wavelength1064nm
    Laser weld depth≤ 2mm
    Pulse width0.3-20ms
    Laser welding frequency0.5 -100HZ
    Spot size range0.2-2mm
    Welding wire0.1-0.4mm
    Power Supply220VAC / 380VAC ± 10% / 50-60HZ
    Power Consumption≤4KW
    Water pressure protection≤ 0.025MPa
    Cooling water temperature≤ 35 degrees
    Temperature protection45 degrees
    Cooling water flow10L/min
    Dimensional1300mm x 600mm x 1600mm
    Weight≤200kg
    Cooling WayWater cooling
    Laser TypePulse


    Delivery and Shipment

    1. Ship in 7 days after 100% payment;
    2. Plywood box packaging.

    Payment Terms

    1. Prepay 30% when we receive the Purchase Order;
    2. Complete the rest 70% payment 3 days before the cargo shipped.

    After-sales service terms

    1. One year guarantee and life time maintenance;
    2. Free training in Herolaser's factory;
    3. In One year of purchase, such as machine failure is a quality problem ,free maintenance. The service does not include human or environmental factors, customers fault and supplies section.
