    1300mm * 900mm Desktop CO2 Laser Cutter , Laser Cutting Equipment For Crafts Industry

    Ask Lasest Price
    Brand Name : Linxuan Laser
    Model Number : LX-1610
    Certification : CE
    Price : Negotiable
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

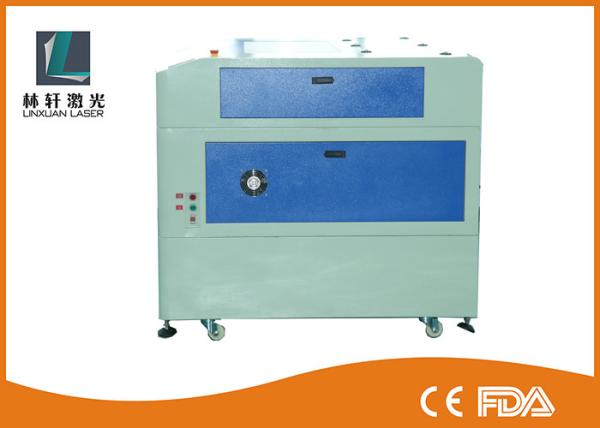

    1300mm * 900mm Desktop CO2 Laser Cutter , Laser Cutting Equipment For Crafts Industry

    Desktop CW5000 CO2 Laser Cutter 1300mm*900mm For Advertisement , Arts And Crafts Industry
    Features


    1. Aopt crawler-type worktable with feeding system, could realiza automatic continuously cutting;
    2. Equip high speed inner sliding rail, cutting fast, with the function of good automatic sewing,
    improved the work efficiency greatly.
    3. special design for thick and heavy materials: lower but heavy load bearing worktable, two laser heads with different length and focus distance

    4. Latest software compatible with AutoCAD,CoreDRAW and other kinds of graphics processing software
    5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%.


    Application

    Applicable Industries: Advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.

    Applicable Materials: Nonmetal materials such as double color boards, acrylic, glass, crystal, wood, foam, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc.
    .

    Machine specification

    ModelLX-1060LX-6040LX-1390LX-1610/1612/1325
    LaserCO2 glass sealed laser tube or metallic sealed laser tube
    Laser power40W/60W/80W60W/80W/100W/120W/150W
    Work platform size1000x600mm |600×400mm | 1300×900mm | 1600x1000mm/1200mm | 1300x2500mm
    Engraving speed≤1000mm/s
    Cutting speed≤500mm/s
    Worktablehoney-comb or aluminum knife optional
    Precision of positioning≤±0.025mm
    Working temperature5-30 °C degree
    Control SystemRDCAM DSP Control system

    SoftWare

    Laser Cut software
    PLT,BMP,DXF,DST,TIF format supported
    CorelDraw, AutoCAD Software Compatible

    Transmission

    Belt transmission (Standard)
    Or ball screw transmission optional for extra cost

    Linear RailTaiwan HIWIN linear rail
    Motor type:Japan Stepper motor
    DPI2500
    Recommended spare partsLaser tube, Focal lens, Reflection Mirror
    Power supply220V/50hz/1kva 220V/60HZ/1PH 110V/60HZ/1ph optional
    Machine dimension (mm)1600*1100*13001600*800*10501950*1470*13002280*1730*1180
    G.W230KG260KG470KG550KGS



    Sample show




    Packaging & Delivery
    1. Wood case or as per required.
    2. The delivery lead time would be 7-15 days against down payment.
    3. As for the wholsalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder
    Competitive Advantages

    1. We offer high quality products at competitive price in quick delivery.
    2. 100% custom pass guaranteed.
    3. Good after-sale service.
    4. Flexible and Untraceable payment terms.
